MyDigitalDiary using sql and python

By Bokkasam Eswarsai

"MyDigitalJournal" is a Python-based digital diary application that allows users to securely record, view, and manage their personal entries using SQLite and a user-friendly GUI.

"MyDigitalJournal" is a Python-based digital diary application that allows users to securely record, view, and manage their personal entries using SQLite and a user-friendly GUI.

Libraries Used:

1. sqlite3: Interaction with SQLite database.

2. Datetime: Handling date and time-related operations.

3. tkinter: Creating the graphical user interface.

4. tkinter. message box: Displaying informative messages in the GUI.
import sqlite3
import datetime
import tkinter as tk
from tkinter import messagebox

------------------------------------------------------------------------------------------------------------------------------------------------------------------

DETAILED PROCESS:

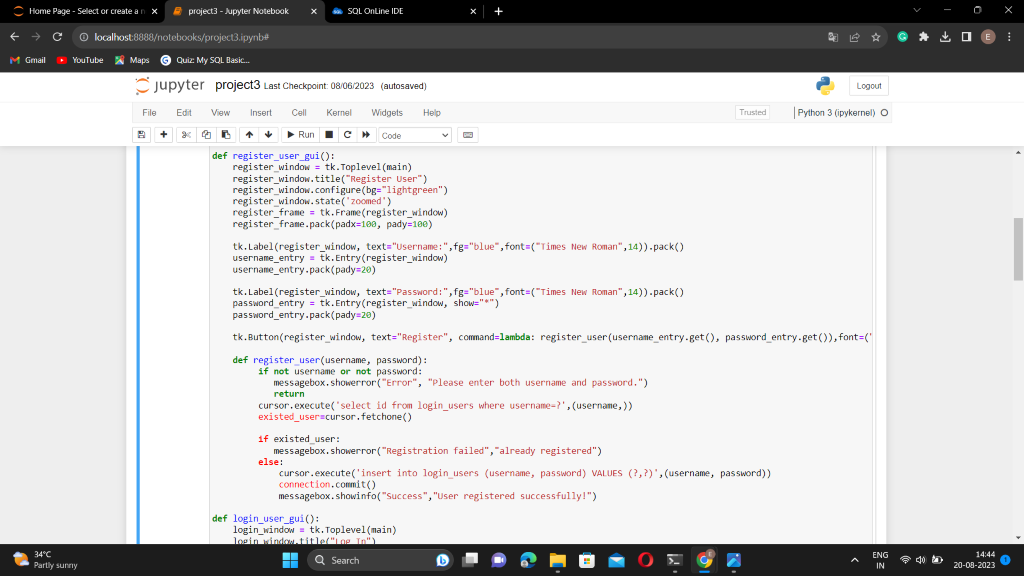

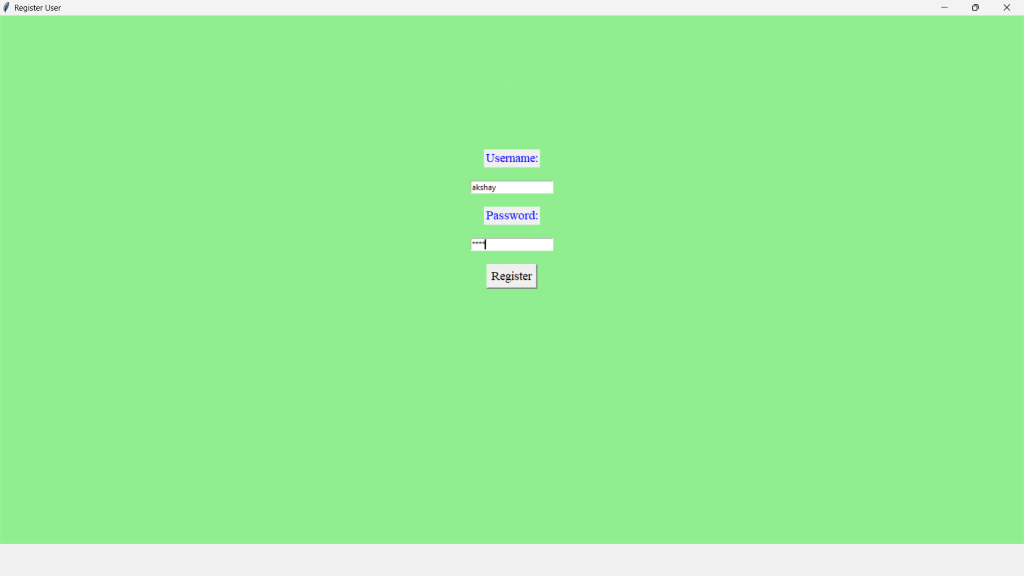

1. Registration Function for Users:

def register_user_gui():
    register_window = tk.Toplevel(main)
    register_window.title("Register User")
    register_window.configure(bg="lightgreen")
    register_window.state('zoomed')
    register_frame = tk.Frame(register_window)
    register_frame.pack(padx=100, pady=100)

    tk.Label(register_window, text="Username:",fg="blue",font=("Times New Roman",14)).pack()
    username_entry = tk.Entry(register_window)
    username_entry.pack(pady=20)

    tk.Label(register_window, text="Password:",fg="blue",font=("Times New Roman",14)).pack()
    password_entry = tk.Entry(register_window, show="*")
    password_entry.pack(pady=20)

    tk.Button(register_window, text="Register", command=lambda: register_user(username_entry.get(), password_entry.get()),font=("Times New Roman",14)).pack()

    def register_user(username, password):
         if not username or not password:
            messagebox.showerror("Error", "Please enter both username and password.")
            return
         cursor.execute('select id from login_users where username=?',(username,))
         existed_user=cursor.fetchone()

         if existed_user:
            messagebox.showerror("Registration failed","already registered")
         else:
             cursor.execute('insert into login_users (username, password) VALUES (?,?)',(username, password))
             connection.commit()
             messagebox.showinfo("Success","User registered successfully!")

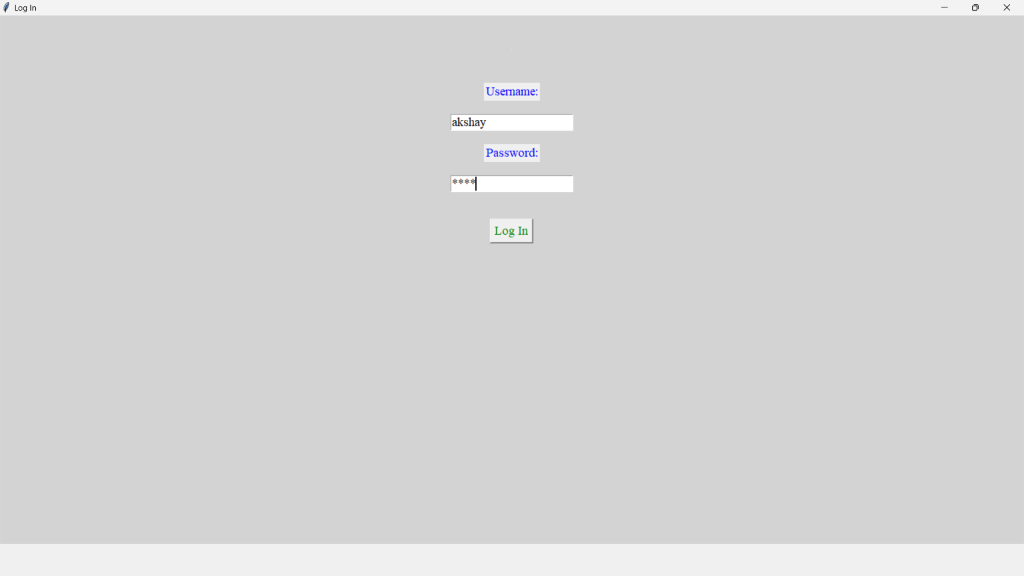

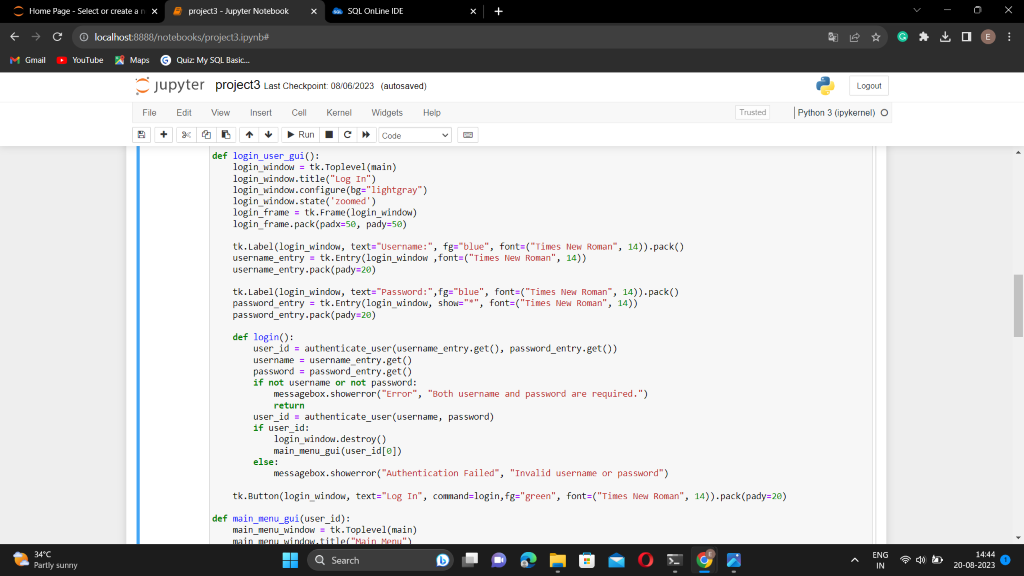

2. Login Function.:

def login_user_gui():
    login_window = tk.Toplevel(main)
    login_window.title("Log In")
    login_window.configure(bg="lightgray")
    login_window.state('zoomed')
    login_frame = tk.Frame(login_window)
    login_frame.pack(padx=50, pady=50)

    tk.Label(login_window, text="Username:", fg="blue", font=("Times New Roman", 14)).pack()
    username_entry = tk.Entry(login_window ,font=("Times New Roman", 14))
    username_entry.pack(pady=20)

    tk.Label(login_window, text="Password:",fg="blue", font=("Times New Roman", 14)).pack()
    password_entry = tk.Entry(login_window, show="*", font=("Times New Roman", 14))
    password_entry.pack(pady=20)

    def login():
        user_id = authenticate_user(username_entry.get(), password_entry.get())
        username = username_entry.get()
        password = password_entry.get()
        if not username or not password:
            messagebox.showerror("Error", "Both username and password are required.")
            return
        user_id = authenticate_user(username, password)
        if user_id:
            login_window.destroy()
            main_menu_gui(user_id[0])
        else:
            messagebox.showerror("Authentication Failed", "Invalid username or password")

    tk.Button(login_window, text="Log In", command=login,fg="green", font=("Times New Roman", 14)).pack(pady=20)



3. Function to Add an Entry:

def main_menu_gui(user_id):
    main_menu_window = tk.Toplevel(main)
    main_menu_window.title("Main Menu")
    main_menu_window.state('zoomed')
    main_menu_window.configure(bg="lightgray")
    button_frame = tk.Frame(main_menu_window)
    button_frame.pack(padx=50, pady=50)

    tk.Button(main_menu_window, text="Add Diary Entry", command=lambda: add_entry_gui(user_id),fg="blue",font=("Times New Roman",14)).pack(padx=10,pady=10)
    tk.Button(main_menu_window, text="View Diary Entries", command=lambda: view_entries_gui(user_id),fg="blue",font=("Times New Roman",14)).pack(padx=10,pady=10)
    tk.Button(main_menu_window, text="Exit", command=lambda:exit(main_menu_window),fg="blue",font=("Times New Roman",14)).pack(padx=10,pady=10)

def add_entry_gui(user_id):
    add_entry_window = tk.Toplevel(main)
    add_entry_window.title("Add Diary Entry")
    add_entry_window.state('zoomed')
    entry_text = tk.Text(add_entry_window, height=25, width=100)
    entry_text.pack()

    def add_entry_to_db():
        add_entry(user_id, entry_text.get("1.0", "end-1c"))
        messagebox.showinfo("Entry Added", "Diary entry added successfully")
        add_entry_window.destroy()

        main_menu_gui(user_id)
    def add_entry(user_id, entry_text):
        entry_date = datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S')
        cursor.execute('insert into journal_entries (user_id, entry_text, entry_date) values (?,?,?)',(user_id,entry_text,entry_date))
        connection.commit()
        messagebox.showinfo("Entry Added", "Diary entry added successfully!")
    tk.Button(add_entry_window, text="Add Entry", command=add_entry_to_db).pack()

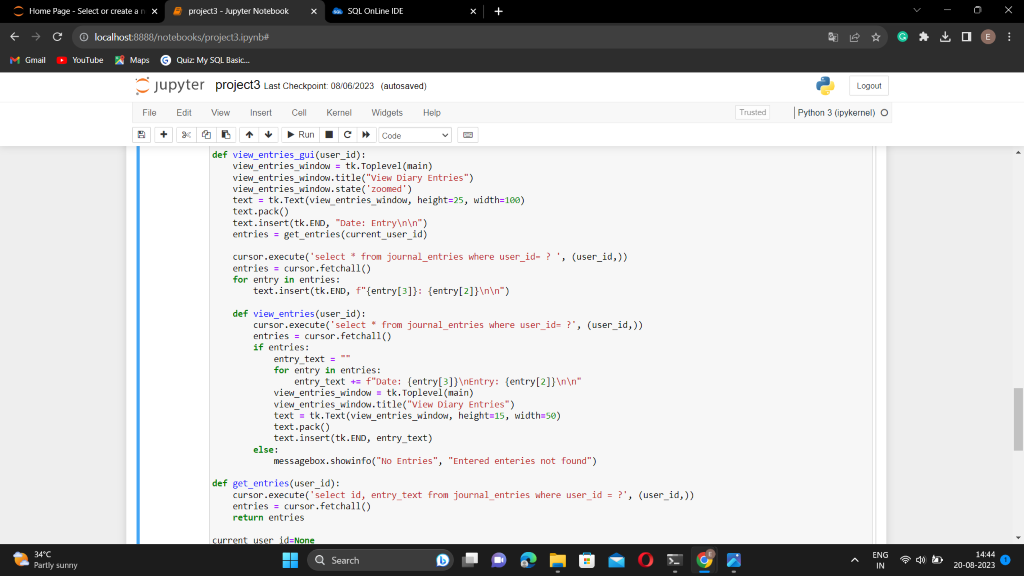

4. View Entry Function:

def view_entries_gui(user_id):
    view_entries_window = tk.Toplevel(main)
    view_entries_window.title("View Diary Entries")
    view_entries_window.state('zoomed')
    text = tk.Text(view_entries_window, height=25, width=100)
    text.pack()
    text.insert(tk.END, "Date: Entry\n\n")
    entries = get_entries(current_user_id)

    cursor.execute('select * from journal_entries where user_id= ? ', (user_id,))
    entries = cursor.fetchall()
    for entry in entries:
        text.insert(tk.END, f"{entry[3]}: {entry[2]}\n\n")

    def view_entries(user_id):
        cursor.execute('select * from journal_entries where user_id= ?', (user_id,))
        entries = cursor.fetchall()
        if entries:
            entry_text = ""
            for entry in entries:
                entry_text += f"Date: {entry[3]}\nEntry: {entry[2]}\n\n"
            view_entries_window = tk.Toplevel(main)
            view_entries_window.title("View Diary Entries")
            text = tk.Text(view_entries_window, height=15, width=50)
            text.pack()
            text.insert(tk.END, entry_text)
        else:
            messagebox.showinfo("No Entries", "Entered enteries not found")

def get_entries(user_id):
    cursor.execute('select id, entry_text from journal_entries where user_id = ?', (user_id,))
    entries = cursor.fetchall()
    return entries

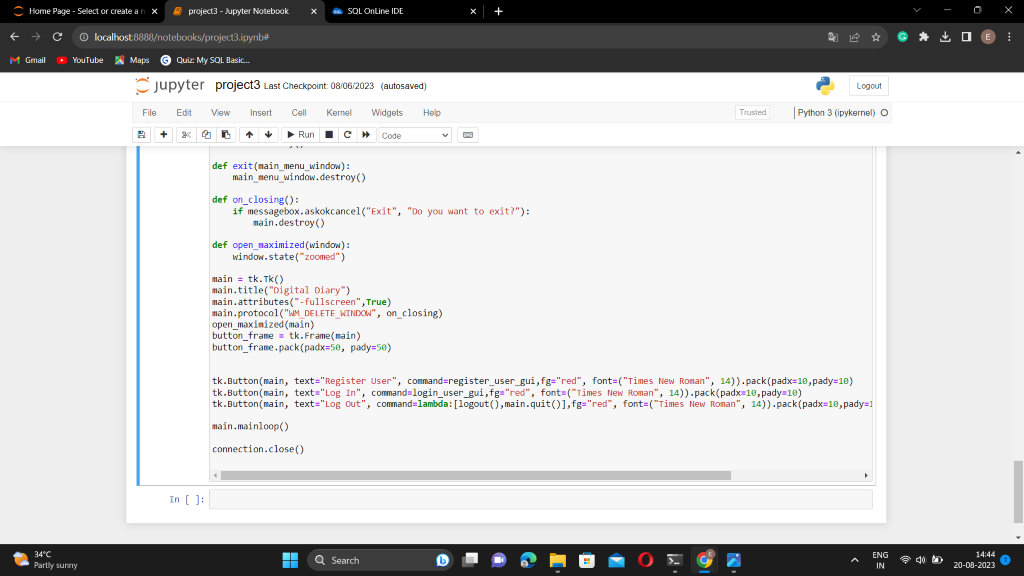

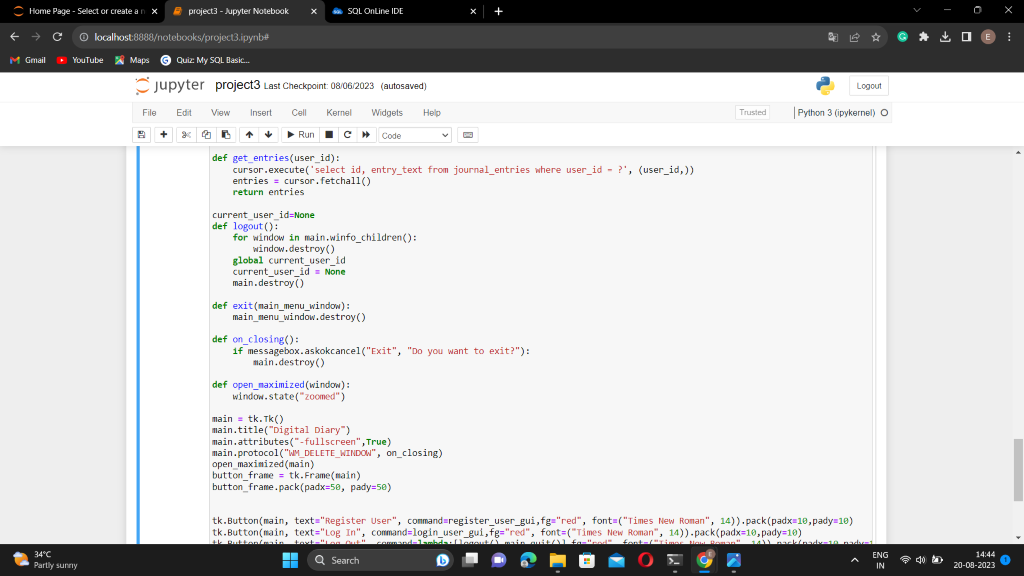

5. Displaying and Closing Program:

main = tk.Tk()
main.title("Digital Diary")
main.attributes("-fullscreen",True)
main.protocol("WM_DELETE_WINDOW", on_closing)
open_maximized(main)
button_frame = tk.Frame(main)
button_frame.pack(padx=50, pady=50)
connection.commit()

tk.Button(main, text="Register User", command=register_user_gui,fg="red", font=("Times New Roman", 14)).pack(padx=10,pady=10)
tk.Button(main, text="Log In", command=login_user_gui,fg="red", font=("Times New Roman", 14)).pack(padx=10,pady=10)
tk.Button(main, text="Log Out", command=lambda:[logout(),main.quit()],fg="red", font=("Times New Roman", 14)).pack(padx=10,pady=10)

main.mainloop()

connection.close()



DETAILED EXPLANATION OF CODE:

"MyDigitalJournal" is an innovative digital diary application developed using Python, SQL, and an intuitive graphical user interface (GUI). This project revolutionizes the traditional concept of diary-keeping by offering users a secure and efficient way to document their personal experiences, thoughts, and memories in a digital format.

Key Features:

  1. User Authentication: Security is a top priority. Users must register with unique usernames and passwords before gaining access to their personal diaries. This ensures that only authorized individuals can view and manage their entries.

  2. User-Friendly GUI: The GUI is designed for ease of use. Users can effortlessly navigate through different sections of the application, creating a seamless and intuitive experience.

  3. Entry Creation: Users can craft entries by typing in their reflections, experiences, and ideas. The application automatically timestamps each entry with the date and time, capturing the moment's essence.

  4. Entry Viewing: Entries are displayed in chronological order, enabling users to relive their experiences in a coherent timeline. This visual representation of their journey enhances the overall journaling experience.

  5. Maximized Window Display: Each application section opens in a maximized window, allowing users to focus on their writing without distractions. This feature emphasizes a dedicated space for personal expression.

  6. Secure Data Storage: The application utilizes SQLite, a reliable database management system, to store entries securely. The database structure is optimized for efficient data storage and retrieval.

  7. User Feedback: Users receive informative messages and alerts throughout their interaction with the application. Whether it's a successful entry addition or an unsuccessful login attempt, the application provides relevant feedback.

  8. Placeholder "?": To enhance user interaction, placeholder "?" prompts are strategically placed throughout the application. These placeholders guide users by indicating where information is required, ensuring a smooth and error-free experience.

  9. Exit Functionality: The "Exit" button allows users to gracefully close individual windows without affecting the root window. This enables a seamless transition between different sections of the application.

  10. Styling Consistency: The application employs a consistent font and styling across all windows. This uniform visual design enhances readability and creates a cohesive user experience.

"MyDigitalJournal" is an invaluable tool for individuals seeking a modern approach to journaling. By combining technological convenience with the cherished practice of documenting one's life journey, this project redefines the diary as a dynamic, digital companion. Users can effortlessly capture and revisit their thoughts and memories, fostering self-reflection and preserving moments for years to come. Whether it's for personal growth, creative expression, or simply recording life's events, "MyDigitalJournal" offers a versatile and user-centric platform for an engaging and meaningful journaling experience.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------

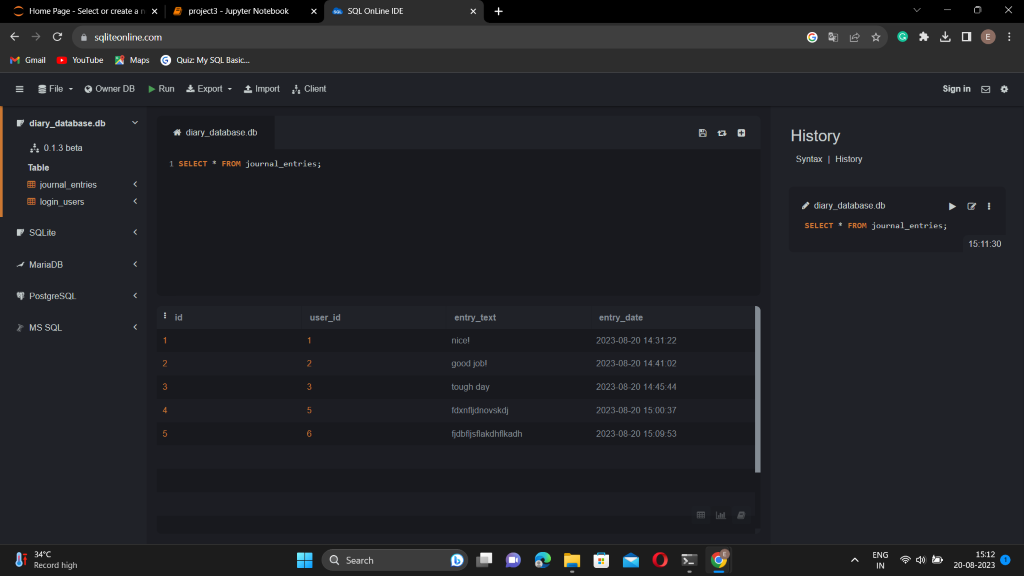

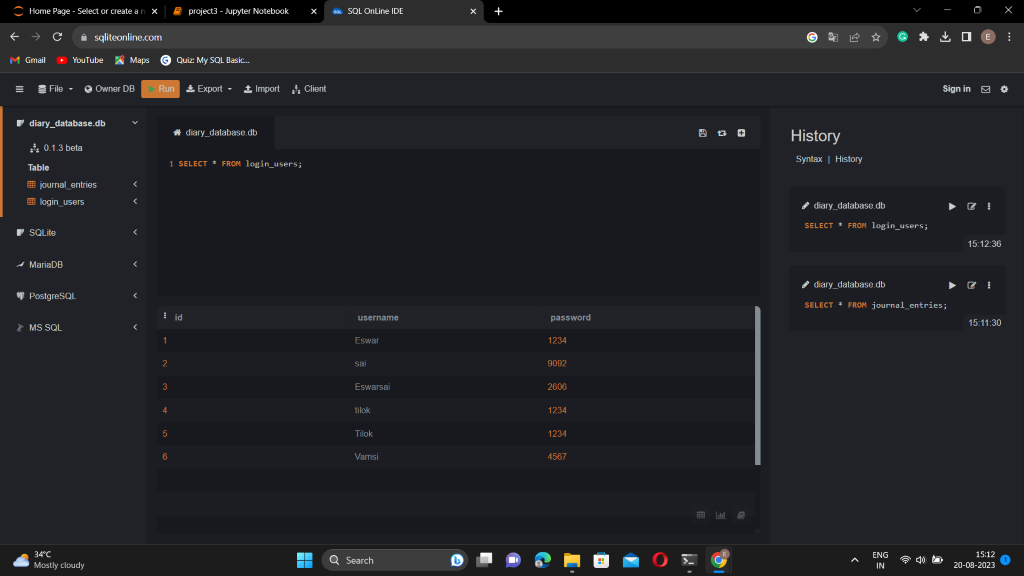

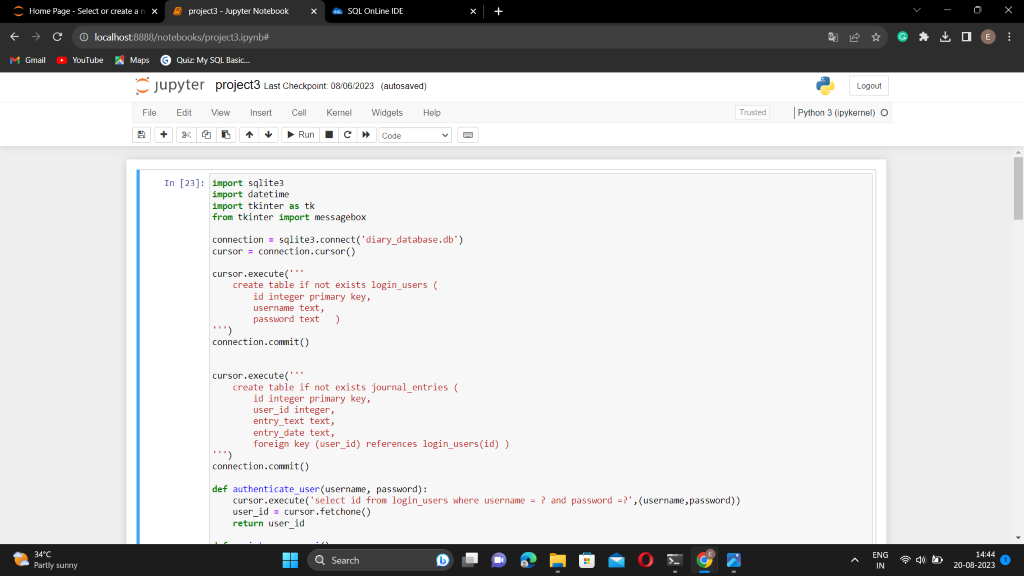

SQLite CONNECTIVITY:





------------------------------------------------------------------------------------------------------------------------------------------------------------

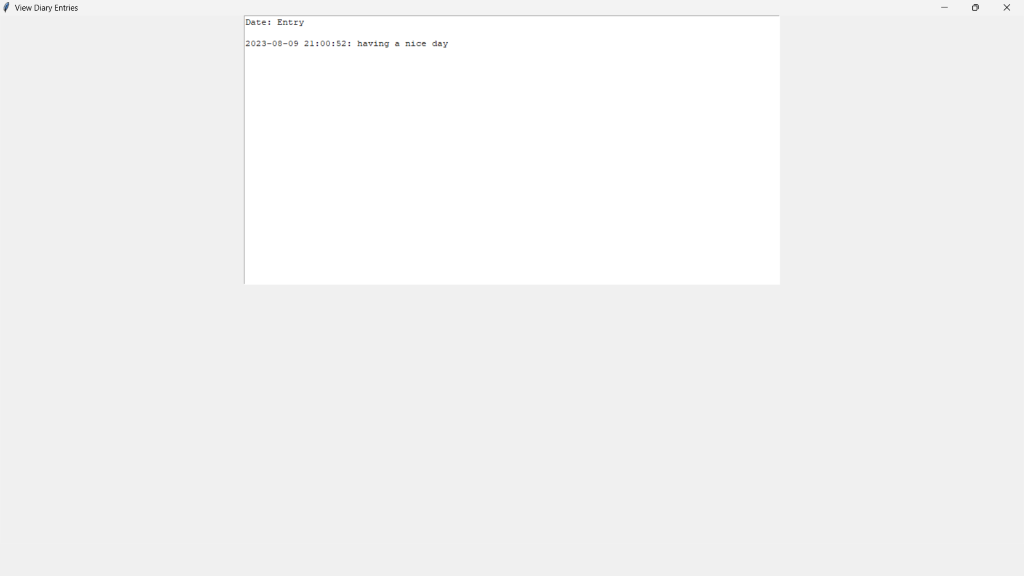

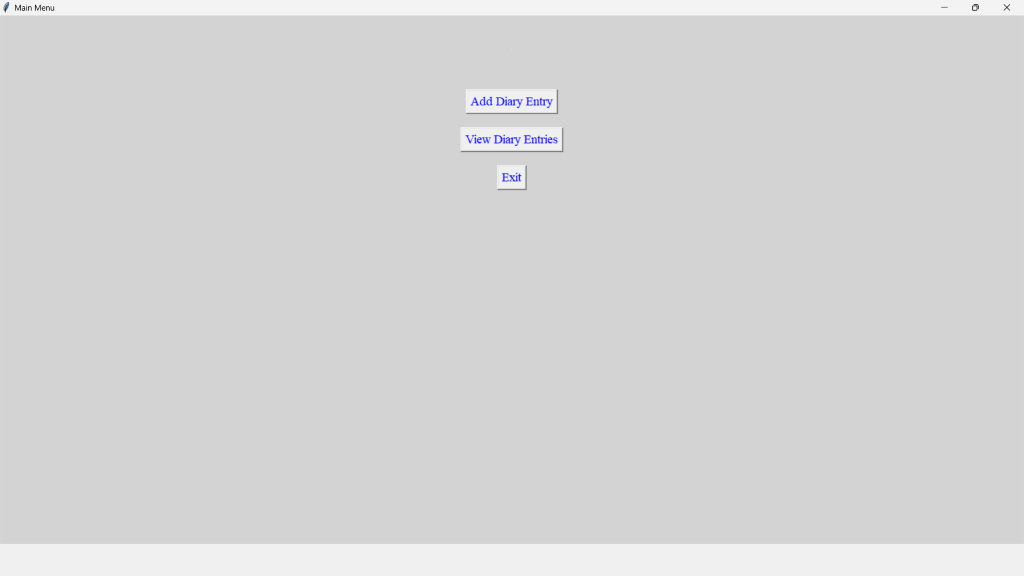

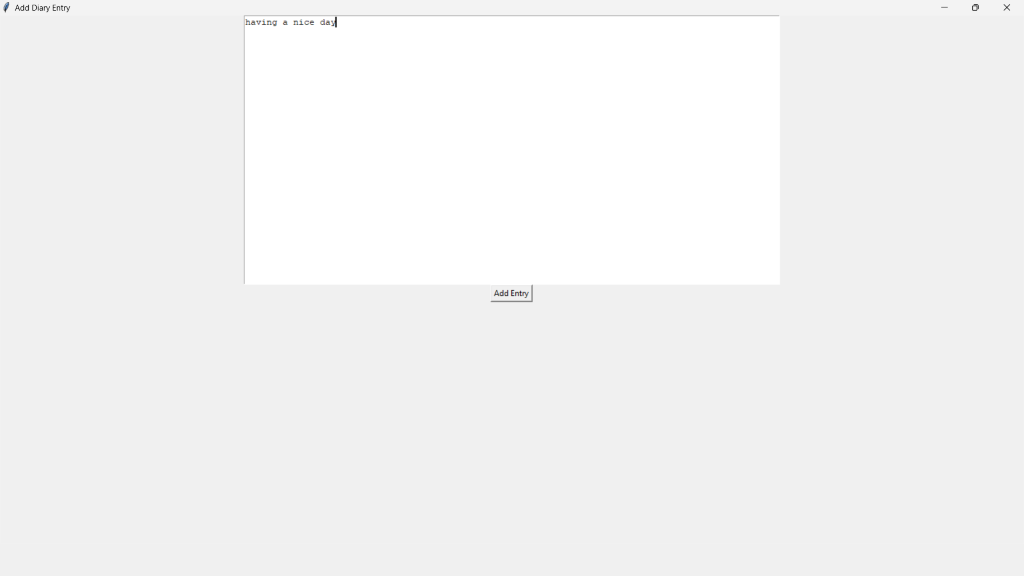

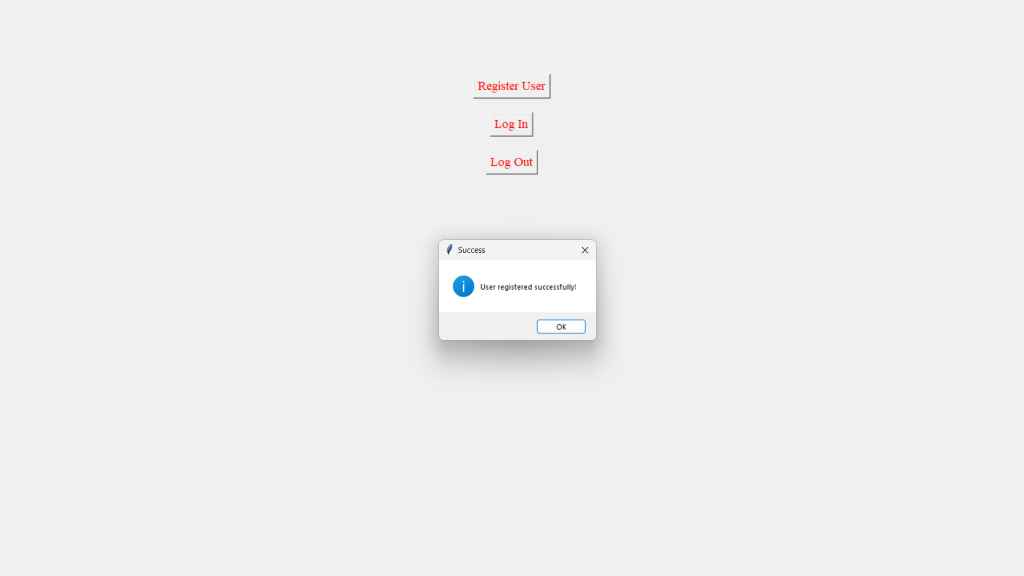

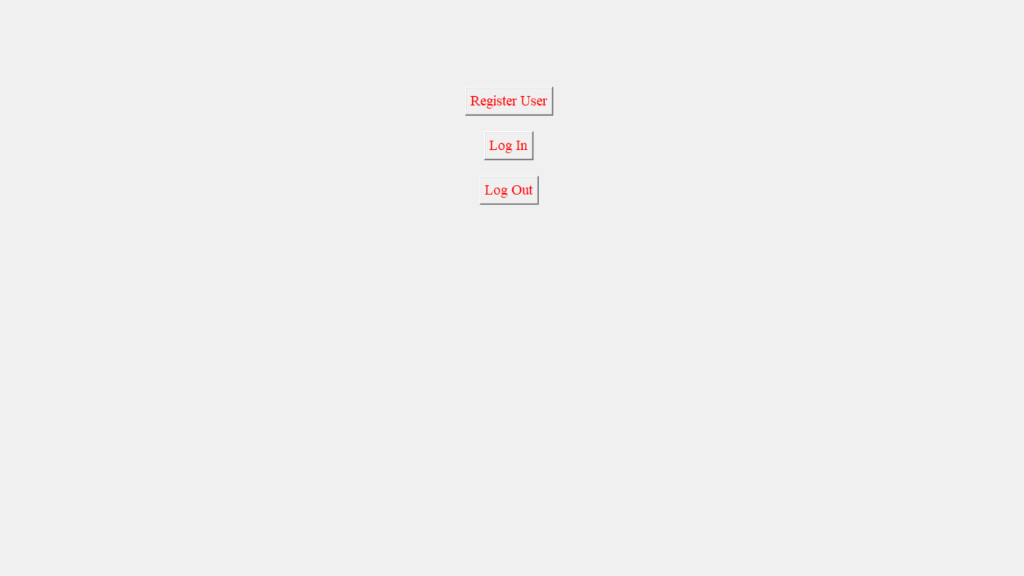

OUTPUT:
