Orkut Clone using JAVA GUI

By Pradum Kumar

The Orkut provide the users with lot of options such as add as a friend, write post, joining communities etc.

The Orkut project is a Java application that allows write post, add friend, joining communities and etc.

Orkut was a social networking platform that was launched in January 2004. It was created by Orkut Büyükkökten, a former Google employee. Orkut gained significant popularity, particularly in countries like Brazil and India, and it played a crucial role in the early days of social media.

Software Requirement:

IDE:Intellij Idea
Database: PostgreSQL
Backend : Java
GUI: JavaFx

Configration:

Database Username:postgres
Database Password:postgres
Database Name: miniorkut
Port:5432

Query:

CREATE TABLE USERS
(

USER_ID BIGSERIAL PRIMARY KEY,
FIRST_NAME VARCHAR(100) NOT NULL,
LAST_NAME VARCHAR(100) NULL,
GENDER VARCHAR(20) NOT NULL,
EMAIL VARCHAR(200) NOT NULL UNIQUE,
USERNAME VARCHAR(10) NOT NULL UNIQUE,
PHONE VARCHAR(10) NULL,
PHONE_CODE VARCHAR(10) NULL,
PASSWORD VARCHAR(500) NOT NULL,
PROFILE_PHOTO BYTEA null,
CREATED_DATE TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

CREATE TABLE POSTS
(
POST_ID BIGSERIAL PRIMARY KEY,
BODY TEXT NULL,
IMAGE BYTEA NULL,
POSTED_BY INT NOT NULL,
POST_TIME TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
FOREIGN KEY (POSTED_BY) REFERENCES USERS (USER_ID)
);

CREATE TABLE FRIENDS
(
ID BIGSERIAL PRIMARY KEY,
FRIEND_OF INT NOT NULL,
FRIEND_USER_ID INT NOT NULL unique,
FRIEND_SHIP_DATE TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

CREATE TABLE FRIEND_REQUEST
(
REQUEST_ID BIGSERIAL PRIMARY KEY,
REQUEST_TO INT NOT NULL,
REQUEST_BY INT NOT NULL,
REQUEST_NOTES VARCHAR(200),
REQUEST_DATE TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

CREATE TABLE COMMENT
(
COMMENT_ID BIGSERIAL PRIMARY KEY,
POST_ID INT NOT NULL,
COMMENT_TEXT TEXT NOT NULL,
COMMENT_BY INT NOT NULL,
COMMENT_TIME TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
FOREIGN KEY (POST_ID) references POSTS (post_id),
FOREIGN KEY (COMMENT_BY) references USERS (USER_ID)
);

CREATE TABLE LIKE_POST
(
LIKE_ID BIGSERIAL PRIMARY KEY,
POST_ID INT NOT NULL,
LIKE_BY INT NOT NULL,
LIKE_DATE TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

CREATE TABLE BOOKMARK
(
BOOKMARK_ID SERIAL PRIMARY KEY,
USER_ID INT NOT NULL ,
POST_ID INT NOT NULL ,
BOOKMARKED_DATE TIMESTAMP DEFAULT CURRENT_TIMESTAMP

);

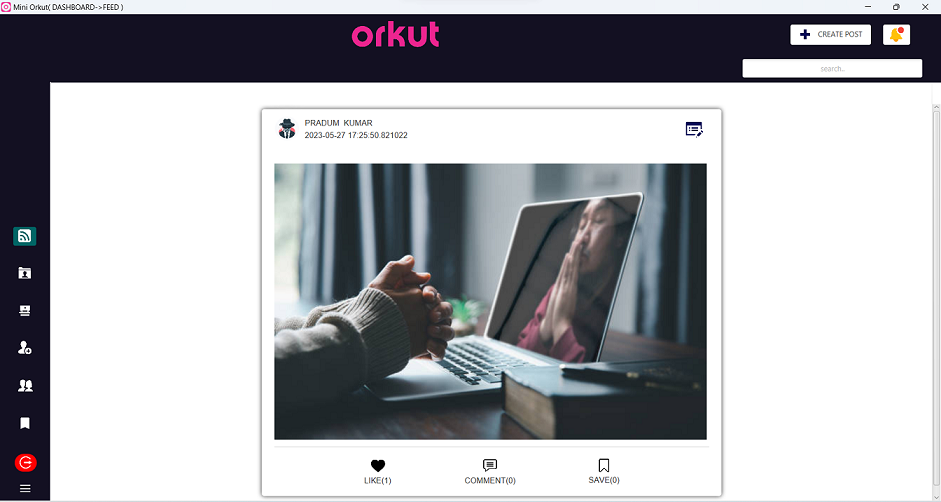

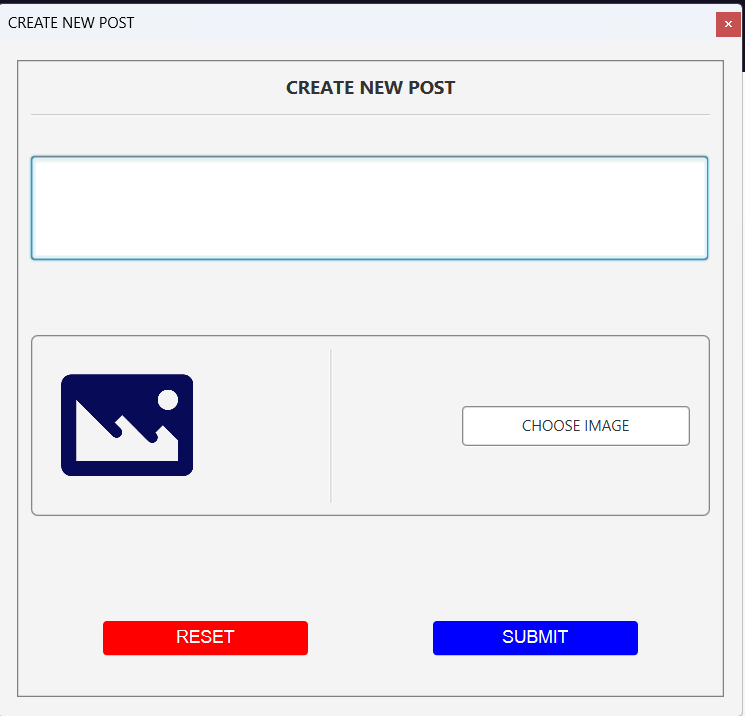

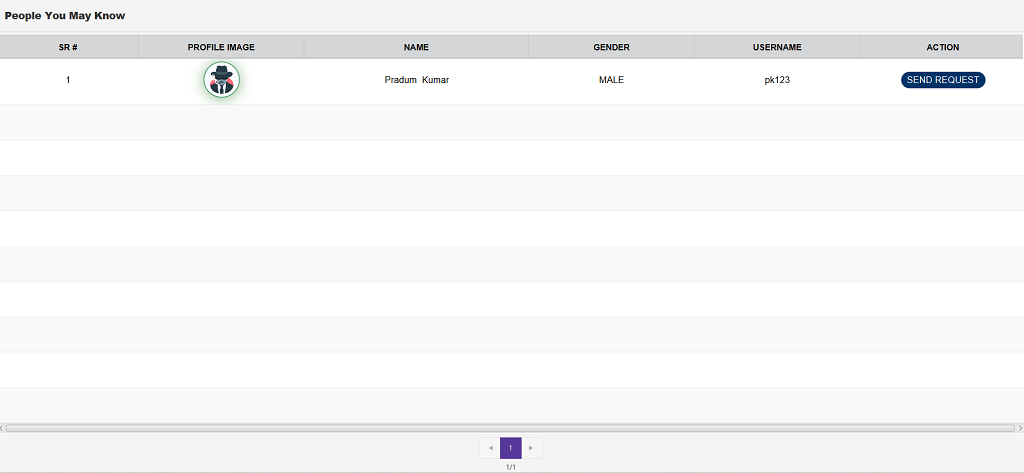

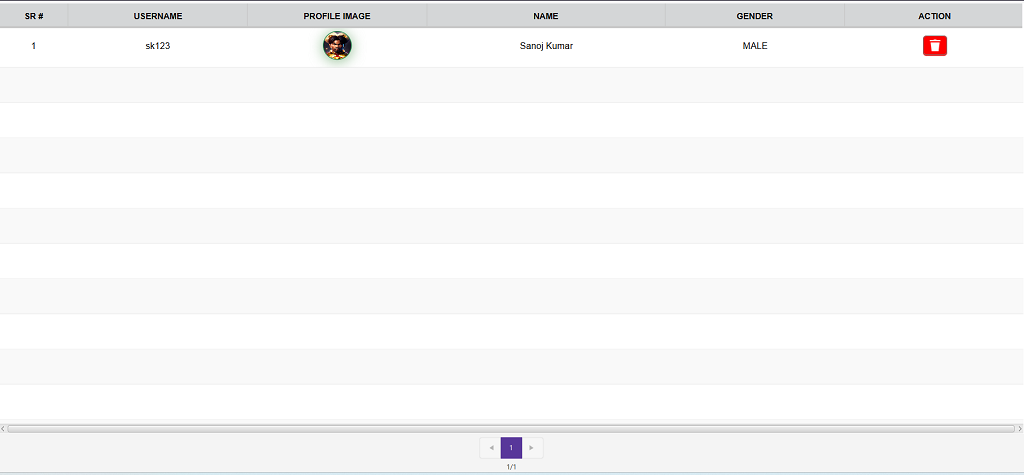

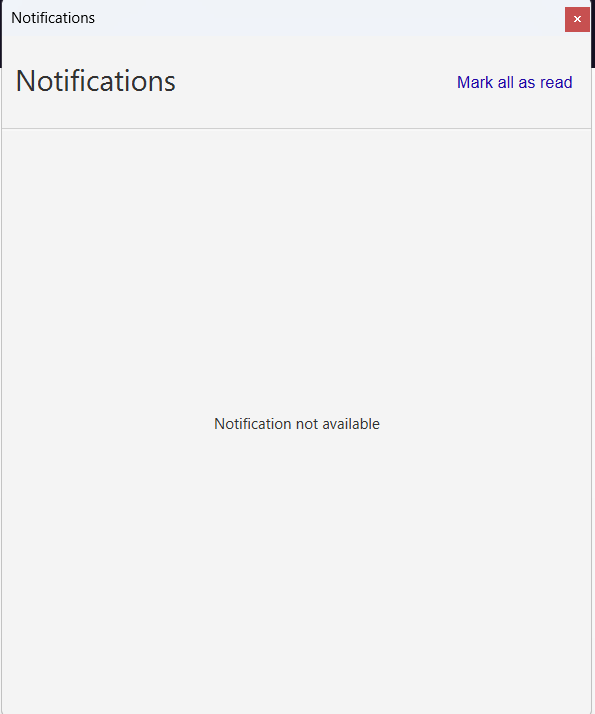

Screenshot:

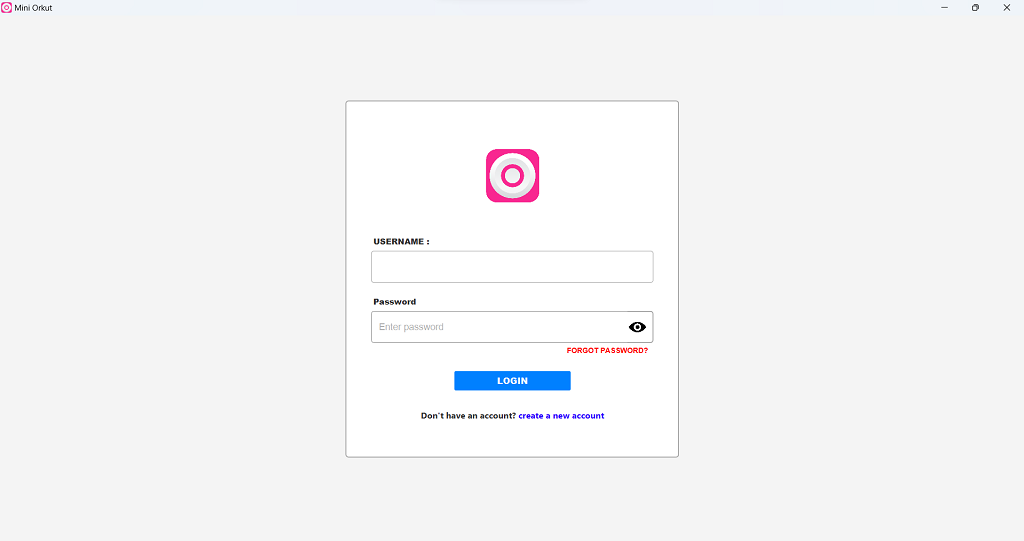

Login:

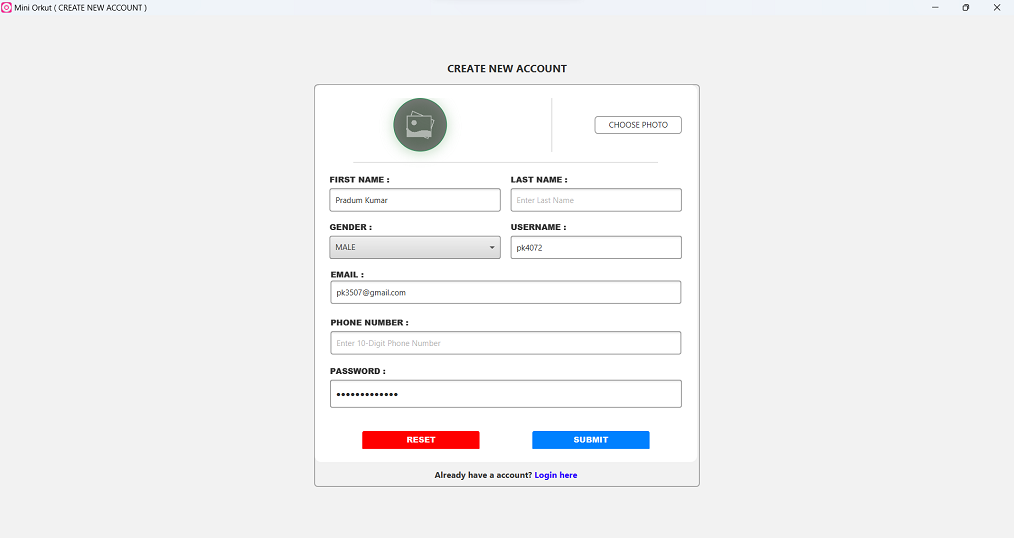

Signup:



Forgot Password:
